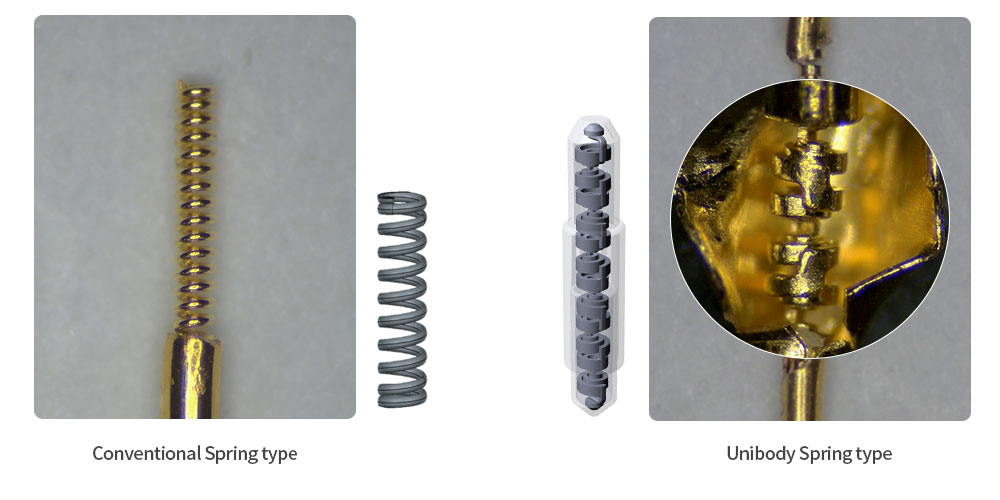

Provide Differentiated Springs
· Unibody Design connected for every parts, Top Plunger, Bottom Plunger, Barrel and Spring all together
· Unibody Design to provide enhanced electrical and mechanical properties
· Unique Spring Design made by leading edge stamping technology achieving higher spring life span
· Cost Effective and High Productivity with Unibody Solution
The identical methodology of design and optimization of the probe pin structure assuming the use of the topology optimization method to determine the optimal shape of unibody probe pin
High Electrical Performance
|

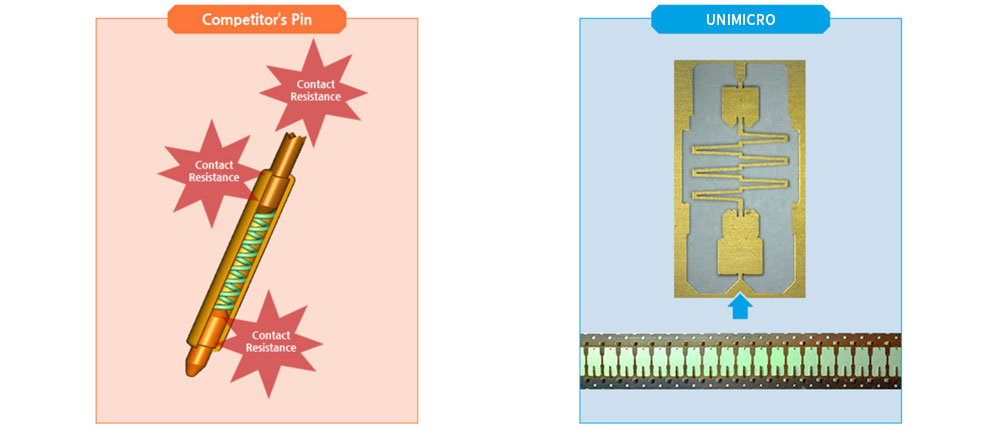

It's an assembly pogopin. Each plunger and spring are assembled by manual clamping, the clamping area occurs contact resistance, it obstructs the flow of current. |
UNIMICRO pin is fully connected from top plunger to bottom |
Self-Inductance |
UNIMICRO STAMPING PIN |
Competitor |
Self Inductance |
0.37nH |
0.50~1.2n |
